Input voltage VDC 10 – 30 VDC
Output voltage 10 – 30 VDC
Number of connectable readers 8
Number of Inputs 8
Number of Outputs 8
Display yes
Internal storage (compact flash) 2GB
Reader Interface Wiegand Wiegand RS-485
Max reader cable length 1200m per Bus
Reader operating voltage E-Mail 10-30V DC
Reader monitoring yes
Number of wires per reader 4 + 1
Number of connectable
reader extensions –
Number of connectable
I/O extensions 3
Reader protocol support OSDP, LBUS, MICOS, BG900
Standards CE, UL, VDS

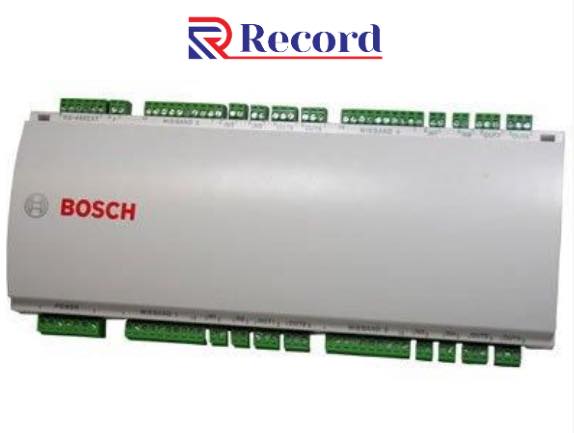

* Intelligent access manager for one to eight entrances
* Four interfaces include the reader power supply
* Standard 2 GB Compact Flash
* LCD display for displaying information
* Self-controlling send and receive switching
* Individual electronic verification of plugs and outputs
* Input for an externally connected tamper contact

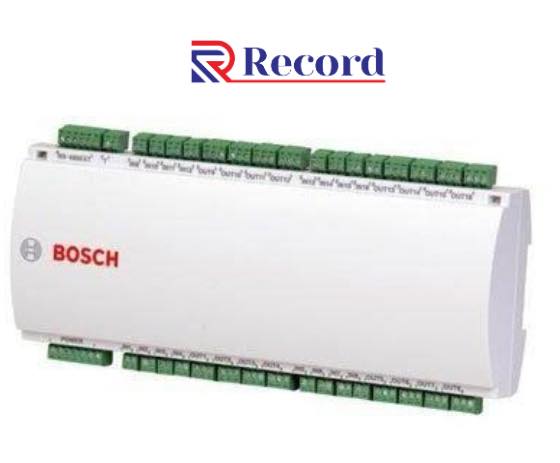

API-AMC2-1610E
* 16 input/output extension board, up to three per AMC, can be combined with the AMC2 16I-EXT and the AMC2 8I-8O-EXT.

* RS485 connection to the AMC2 4W controller
* 4 Wiegand reader interfaces
* 8 analog inputs
* 8 relais outputs (wet or dry)
* Status of inputs and outputs shows on AMC2 4W LCD display
* Transfer rate to EXT interface (RS485): 9,6 kBit/sec

APS-PSU-60 Power supply unit
A power supply unit with an integrated battery
charging device, that supports 12 V/7 Ah, 12 V/14 Ah
and 24 V/7 Ah batteries, with selectable 12 VDC or 24
VDC voltage output.

ARD-AYBS6260 proximity reader
* RS485/OSDP and 26 Bit Wiegand interface
* Supports the data record of Bosch coded MIFARE classic cards and keyfobs and CSN of ISO14443A credentials
* Three LED indicators and a beeper give clear feedback to the user during operation
* IP65 rated for indoor and outdoor use
* Wall or mullion mount
* Tamper switch

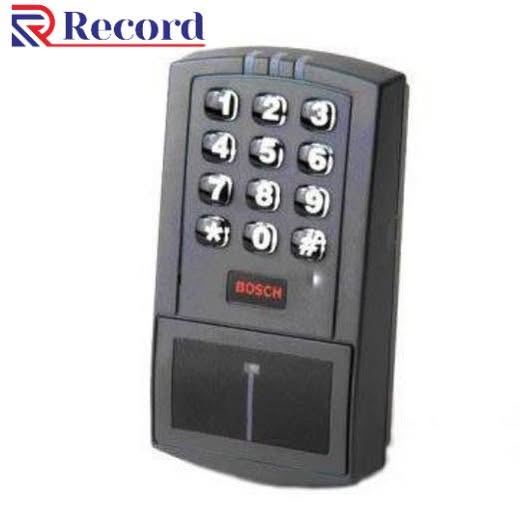

Bosch ARD-EntryProx compact card reader with keypad
* Compact access terminal (surface-mounted) with reader unit for proximity cards and keypad for PIN code entry and configuration
* Self-sufficient operation
* Transaction memory for a maximum of 1000 transactions; transaction consists of personal ID, time, date and type of transaction
* Maximum of 2000 personal IDs
* Configurable PIN code block after a specified number of incorrect entries
* Quick personal activation by showing card
* Alarm via auxiliary relay
* It is possible to connect it to an access controller via the Wiegand interface

ARD-FPBEW2-H2 fingerprint reader
* Compatibility with AMS 2.0, BIS/ACE 4.5 and later versions, for easy enrollment and configuration of fingerprint templates as well as card data in one system
* Highest security standard supporting OSDPv2 secure channel protocol and Bosch coded Mifare Desfire credentials
* Flexibility due to Wiegand and OSDP support, and dual-frequency RFID technology supporting proximity cards and smart cards
* Rugged IP67/IK09 housing for tough environment and outdoor installations
