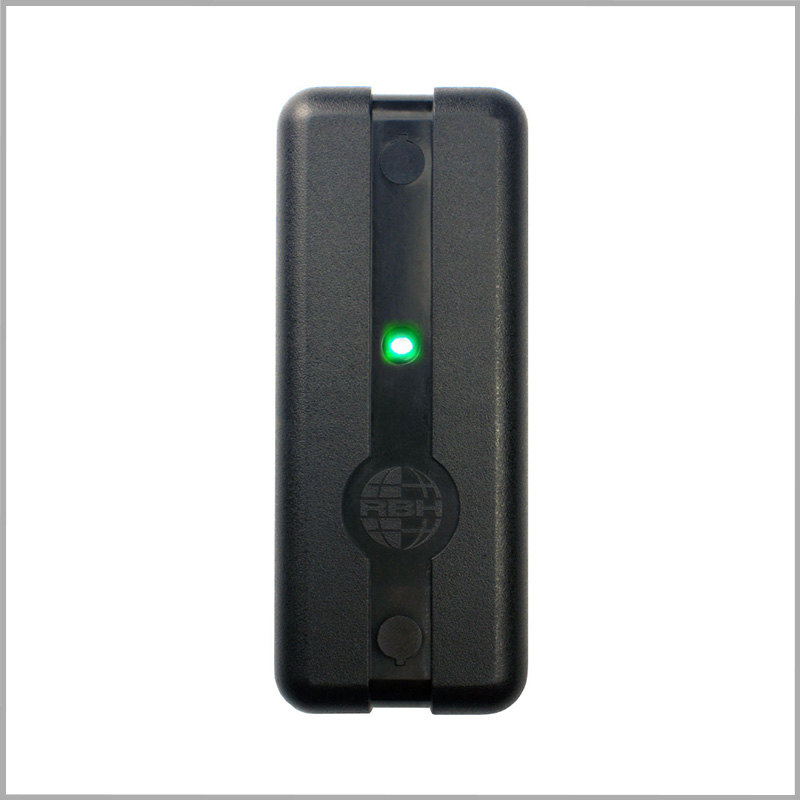

Utilizing proven digital radio frequency identification (RFID) technology, RBH-FR-360N Proximity Readers deliver the best in class read ranges and reliable operation.

Mounting is simplified with vertical and horizontal mounting slots, instead of holes, which allow the reader to be conveniently adjusted and leveled. To allow both indoor and outdoor operation the electronics are sealed in tamper resistant epoxy potting.

Notable features for these are: low power consumption, easy-to-install readers that include Wiegand interface, independently controllable multi-color LED and audio sounder.

Related Products:

• RBH-BFR-FACE15-DNB Face Recognition Series
• RBH-BFR-150-DNB Fingerprint Reader Series
• blueLINE RBH-M45 Mullion Reader Series
• blueLINE RBH-N86 Single Gang Reader Series
• blueLINE RBH-NK86 Keypad Reader Series
• blueLINE RBH-NK86 Keypad Reader Series
• RBH-BFR-350-P Fingerprint Reader Series
• BFR-150-P Fingerprint Readers
• RBH-FK-640 Keypad Proximity Reader Series
• RBH-FK-640 Keypad Proximity Reader Series
• AWID SP-6820 Proximity Reader Series
• AWID MR-1824 Proximity Reader Series
• AWID KP-6840 Proximity Keypad Reader Series
• RBH-FR-2200 Series
• RBH-FR-4400 Series
• AWID LR-2000 Long Range Reader Series
• RBH KP-34 Vandal Resistant Series
• RBH-FR-400RV-HA Vandal Resistant Reader Series

Our LIF-200 TCP/IP LAN Gateway is an inexpensive way to connect RBH Access Control panels to a host via the Internet or a local/wide are network. Both RS-485 and RS-232 are supported and are selectable via hardware switch. Reliable, field proven architecture makes for easy configuration and use. Our software communicates directly with LIF-200 gateway, without the need of third party software or “virtual Com ports”. Automatic discovery software is included. Configuration is easily performed via Internet browser. Just configure IP address and port number, type in same settings in the RBH software and you are ready to communicate.

LIF-200 automatically detects and adjusts network connection speed. For complex configurations a variety of adjustable settings are available.

• RBH-EXITRDR
• IOC8
• PC-100 ASCII Gateway
• STANDARD 1U
• STANDARD 2U
• ENCL-1
• ENCL-1PS
• ENCL-2
• ENCL-2PS

AWID’s LR-2000™ Long-Range Reader is a UHF tag and card reader used in RFID applications like gate access for vehicles, and physical access for people. Its electronics and antenna are integrated in a single compact enclosure. The LR-2000 is optimally designed for Automatic Vehicle Identification (AVI) and Access Control applications such as parking facility gate control in a parking facility. It also provides identification and access for people at doorways, wheelchairs at elevators, and gurneys in hospital entrances.

The LR-2000 Reader assures security by use of AWID’s proprietary encryption for communications between the reader and its UHF vehicle tags and hand-held cards.

Related Products:

• RBH-BFR-FACE15-DNB Face Recognition Series
• RBH-BFR-150-DNB Fingerprint Reader Series
• blueLINE RBH-M45 Mullion Reader Series
• blueLINE RBH-N86 Single Gang Reader Series
• blueLINE RBH-NK86 Keypad Reader Series
• blueLINE RBH-BFR-350 Fingerprint Reader Series
• RBH-BFR-350-P Fingerprint Reader Series
• RBH-FR-360N Proximity Reader Series
• RBH-FK-640 Keypad Proximity Reader Series
• AWID SR-2400 Proximity Reader Series
• AWID SP-6820 Proximity Reader Series
• AWID MR-1824 Proximity Reader Series
• AWID KP-6840 Proximity Keypad Reader Series
• RBH-FR-2200 Series
• RBH-FR-4400 Series
• RBH KP-34 Vandal Resistant Series
• RBH KP-26 Vandal Resistant Series.
• SK-3000 Scramble Keypad Series
• RBH-FR-400RV-HA Vandal Resistant Reader Series

The INT-UNC100 series is a welcome
addition to the new generation of
powerful and reliable Integra32
hardware. The two door native
TCP/IP controller comes equipped
with an onboard battery backup
charger and a 32-bit processor with
encryption. On-board RS-485 channel
makes it easy to provide connectivity
to other RBH and 3rd party devices,
such as: readers, burglar alarm panels,
automation systems, etc. The UNC100-
132 model comes equipped with IEEE
802.3at compliant PoE capability,
further increasing the UNC series’ award-winning efficiency.

Related Products:

• UNC100 Universal Network Controller
• UNC-500 Universal Network Controller
• IOC16M Input / Output Controller
• RC2M Reader Controller
• IRC-2000
• IRC-2000-UL
• AX-NIRC-2000
• URC-2002
• AX-NURC-2002
• URC-2004
• AX-NURC-2004
• URC-ELV8-1
• URC-ELV8-2
• URC-2003
• NURC-2003
• URC-2005
• NURC-2005
• PC-100 ASCII Gateway
• RBH-AXS-LCD4 Alarm Keypads

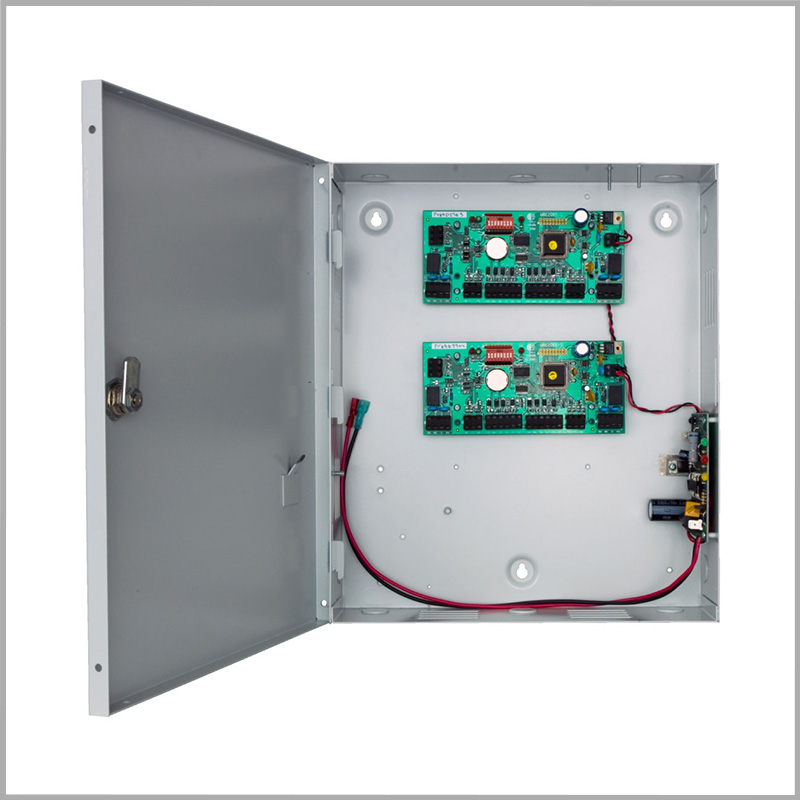

HIGH DENSITY UNIVERSAL READER CONTROLLER

The URC-2004 Universal Reader Controller allows control of four access control points (doors). It utilizes flash firmware for easy upgrades, and employs fully distributed intelligence for off-line operations. Decisions such as access level changes, schedule activation and card expiration are made by the URC-2004 controller without the need of a computer.

The panel contains on-board clock and memory backup as well as thermal overload protection. URC-2004 supports fully supervised communication via RS-485 and TCP/IP with selectable communication speed up to 56.6Kbps.

Connect to the Integra32 Server PC via LIF-200 TCP/IP Gateway or directly via a USB/RS485 converter, for a total of up to 8 panels per controller network.

Each URC-2004 Universal Reader Controller has a capacity of storing 3,000 unique 10 digit card numbers, 10 unique site codes and 3,000 off line transactions in its event buffer. In addition Each URC-2004 Universal Reader Controller can simultaneously read up to 5 distinct Wiegand or Clock & Data card formats.

The URC-2004 has 8 fully programmable four state monitoring, NO / NC supervised inputs & 8 fully programmable Fail Safe / Fail secure outputs (4 x 5A @ 30VDC SPDT dry contacts and 4 x 12VDC 100mA electronic drivers).

The URC-2004 Universal Reader Controller includes a lockable metal enclosure and a built in 2A 12VDC power supply. Also available as a convenient KIT.

Related Products:

• UNC100 Universal Network Controller
• UNC-500 Universal Network Controller
• IOC16M Input / Output Controller
• RC2M Reader Controller
• IRC-2000
• IRC-2000-UL
• AX-NIRC-2000
• URC-2002
• AX-NURC-2002
• URC-2004
• AX-NURC-2004
• URC-ELV8-1
• URC-ELV8-2
• URC-2008
• URC-2003
• NURC-2003
• URC-2005
• NURC-2005
• PC-100 ASCII Gateway
• RBH-AXS-LCD4 Alarm Keypads

• Small footprint
• Simple to install
• Optimal capacity
• Distributed architecture
• Flash Firmware updates
• Built-in clock and calendar
• Expandable to 32 floors
• LOW COST!
