BioLite Net

Overview:

BioLite Net is designed to offer a rugged and reliable fingerprint identification solution, particularly suited for outdoor installations and harsh environments. It combines advanced technology with user-friendly features for effective access control and time attendance.

Key Features

Durability:

IP65 rated for waterproof and weatherproof protection

Rugged structure suitable for outdoor use

Fingerprint Identification:

Fast and accurate: 1:2,000 identification in 1 second

Award-winning fingerprint algorithm (No.1 in FVC2004 and FVC2006)

500 dpi optical sensor

Fingerprint Capacity: 5,000 fingerprints (10,000 templates)

User Authentication:

Multi-modal: Fingerprint, PIN, and RF card reader (EM, Mifare/Desfire)

Built-in keypad and graphic LCD for intuitive operation

Template on card to store fingerprint data

Installation and Connectivity:

Easy installation with TCP/IP or RS485 network interface

Wiegand input/output configurable up to 64 bits

Internal relay for direct lock interface (standalone control mode)

Operation and Management:

Easy-to-use PC software for access control and time attendance

Slim design: World’s smallest fingerprint terminal

Multi-color LED and multi-tone buzzer for user interface

Access Control Features:

128 access groups and time schedules

Anti-passback door zones supporting 64 readers

Tamper switch and duress finger option

External relay unit for secure door control and I/O expansion

Specifications

CPU: 400MHz DSP

Memory: 8MB Flash + 16MB RAM

Identification Speed: 2,000 matches in 1 second

Log Capacity: 50,000 events

RF Card: EM, Mifare/Desfire

Network Interface: TCP/IP, RS485

Wiegand: 1 channel (input/output switchable)

TTL I/O: 2 inputs for exit switch and door sensor

Internal Relay: Supports deadbolt, EM lock, door strike, automatic door

Ingress Protection Rate: IP65

LCD: 128 x 64 pixel, black & white

Keypad: 3 x 4 keypad, 3 navigation keys

Sound and Interface: Multi-color LED and multi-tone buzzer

Operating Voltage: 12VDC

Size: 60 x 185 x 40 mm (W x H x D)

Value Proposition:

BioLite Net connects customers with cutting-edge technology to enhance their security and operational efficiency.

Description:
The FaceStation FSF2-DB is a cutting-edge multimodal terminal designed to meet the evolving needs of safety and hygiene in the post-pandemic world. It offers contactless solutions and advanced features for secure and efficient access control.

Key Features

Contactless Solution:

Detects and limits access for users not wearing masks.

Face recognition capability for users wearing masks.

Remote user enrollment through profile photo uploads.

Integration with Suprema Thermal Camera to identify users with elevated skin temperature.

Robust Security:

Secure booting process for enhanced device security.

Encryption of all biometric credentials and personal information.

Additional Information

Biometric: Facial recognition

RF Option:

125kHz EM

13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa

RF Read Range:

EM/MIFARE/DESFire: 50 mm (2″)

FeliCa: 30 mm (1.2″)

Recognition Distance: 0.5m ~ 1.3m (19.7″ ~ 51.2″)

Recognition Height: 140cm ~ 190cm (55.1″ ~ 74.8″)

Resolution: 300 x 400 pixels

Max. Users (1:1): 100,000 (based on one face/fingerprint enrollment per use)

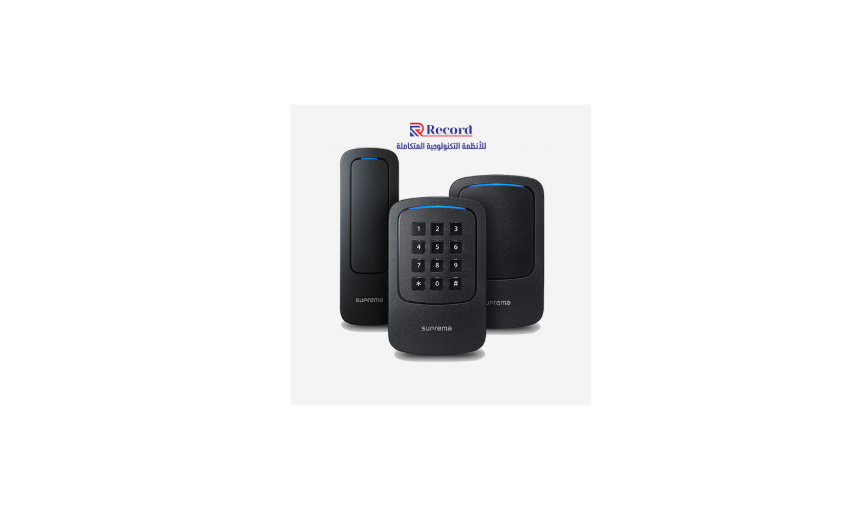

The XPass 2 is a rugged and versatile RFID device designed for outdoor and challenging environments. It combines Suprema’s advanced RFID technology with a flexible multi-hardware platform to offer a wide range of installation options.

Features

Mobile Access: Supports NFC and BLE for mobile card reading.

Communication: Industry standard communication via OSDP.

Hardware Structure: Multi-type hardware options including mullion-type, gangbox-type, and gangbox keypad-type.

Durability:

IP Rating: IP67 (Water and Dust Resistant)

IK Rating: IK08 (Vandal Resistant)

Power over Ethernet: Supports PoE for easy installation.

Enhanced Security: Equipped with Secure Element for improved security.

Multi-card Reading: Dual-frequency (125kHz / 13.56MHz) RFID technology.

Specifications

CPU: 1.0 GHz

Memory: 4GB Flash + 64MB SDRAM

Max. Users: 200,000

Max. Text Logs: 1,000,000

Mobile Card Compatibility: NFC, BLE

Installation Type:

Mullion: XP2-MDPB

Gangbox: XP2-GDPB, XP2-GKDPB

Keypad Support:

Not Supported: XP2-MDPB, XP2-GDPB

Supported (3×4): XP2-GKDPB

Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)

Sound: Multi-tone buzzer
