The innovative design makes the CS series more than just another conference system. With its ECM capsule, intelligent automatic mixing technology and integrated acoustic and mechanical system, the conference system provides turnkey solution with natural, feedback-free audio performance whatever the environment. This conference system is ideal for conferences up to 150 attendees. The system is composed of 1 central unit and up to a maximum of 150 chairman or delegate console.

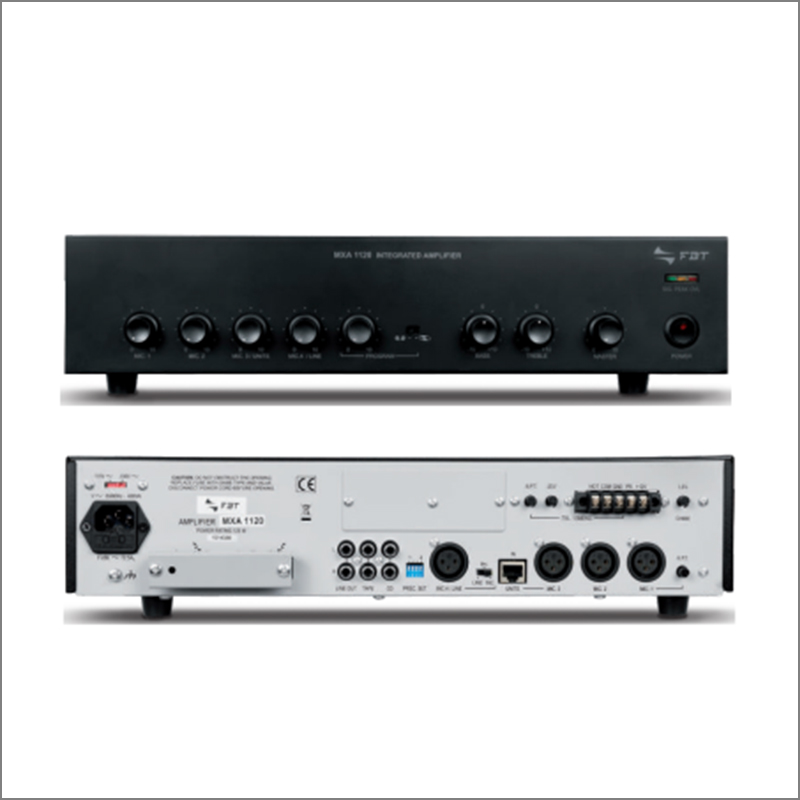

60W / 120W amplifiers :
-1 – off XLR microphone input with Phantom power supply desk microphones MBT 1101 series ( RJ45 , CAT5 SFTP cable )
– 1 – off MIC / LINE inputs with Phantom , MIC or LINE selector
– 2 – off XLR balanced microphone inputs with Phantom power supply ( MIC1 with A.P.T. adjustment )
-2 – off AUX inputs for sound sources ( TAPE / CD )
– Micro – switches for setting priorities and input functions
– Up to 8 desk microphone with cascade connection
– TEL / EMERG input for emergency calls with input level and activation threshold ( A.P.T. ) adjustment
-Line auxiliary output
– Loudspeakers line outputs ( constant voltage 50-70-100V / low Impedance 8 Ohm )
– Terminal strip for 24Vdc external power supply
– Terminal strip for precedence connection
– Warning signal ( chime ) level adjustment

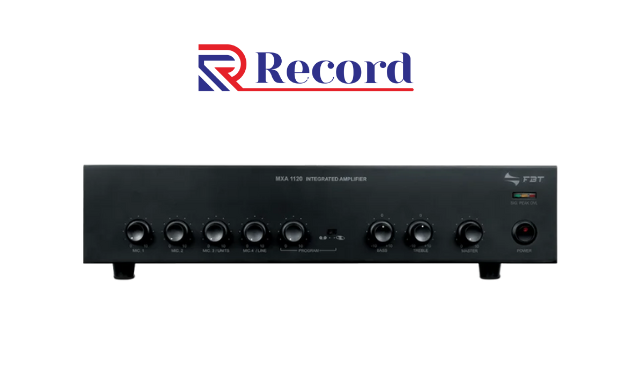

-FBT AMPLIFIERS MPA5480-MPA5240-MXA1120-MDS SERIES

transformer attenuators circuit TL10-RE:

These attenuators enable the sound level in a room to be adjusted by attenuating the sound performance of the speaker units with a transformer in constant-voltage systems (100, 70, 50 V). Each attenuator has an autotransformer, an 11-position switch (10 positions + Off) and front masks. They are available with different output powers, depending on the load that can be connected to them.

Each model (TL10-RE, TL30-RE and TL60-RE) has a by-pass relay able to exclude the attenuator in case of an alarm and/or emergency signal having priority (activation of the relay with a 24 VDC current on an additional two-pole line). They can be easily flush-mounted on a wall using the AC911 box or secured to a wall using the AC913 adaptor.

transformer attenuators circuit TL10-RE 10W Attenuator

The TL10-RE attenuator is equipped with a by-pass relay capable of excluding attenuation in the presence
of alarm and/or emergency signals having priority. It can be easily flush-mounted using the Paso AC911
box or wall-mounted using the AC913 adapte
